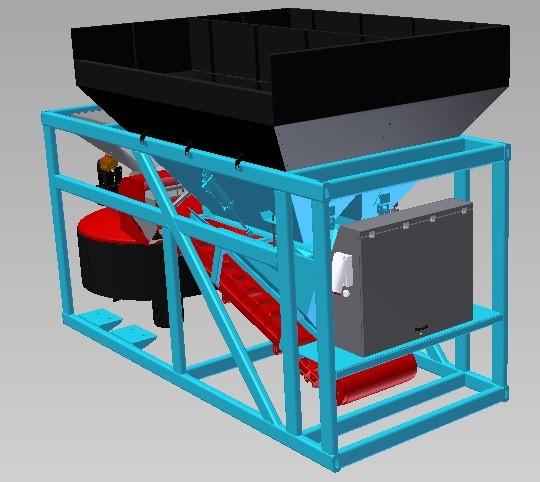

    Wet Concrete Batching And Mixing Plant , Truck Mounted Concrete Batching Plant

    Wet Concrete Batching And Mixing Plant , Truck Mounted Concrete Batching Plant


    General technical information:


    The mobile concrete mixing station is a concrete production equipment that integrates material storage, weighing, conveying, stirring, unloading and automatic control system of the concrete mixing station with a trailer unit;

    It has the same operation process, operation mode and maintenance as the fixed automatic mixing station; it also has unique features such as flexible movement, quick and easy assembly and disassembly, and simple storage management.


    Provides the following advantages:
    Quick installation without crane and quick relocation (only 2 hour)
    No need for any concrete foundation
    Installation on a very small space
    Transportable by towing on roads
    Cost effective shipping to overseas
    No permission required for concrete production
    Allowing concrete production on site, significantly reduces the concrete transportation cost
    High quality and precise concrete production


    Without axles and tires

    Wet Concrete Batching And Mixing Plant , Truck Mounted Concrete Batching Plant

    Detail show:


    1. Mixer detail show

    Wet Concrete Batching And Mixing Plant , Truck Mounted Concrete Batching Plant


    2: Weighing system , Driving system etc. detail show


    Wet Concrete Batching And Mixing Plant , Truck Mounted Concrete Batching Plant


    Technical features:


    Max mixing capacity:0-50m³ / h
    Total electric power (min-max):35-57KW.
    Automatic and manual mixing controlIncluded
    WEIGHTING SYSTEM
    Aggregate bins2*4m³Sand and stone
    Aggregate Weigh Hopper0-1800KGWeighing load cell
    Aggregate Weighing belt conveyorBelt wide B=800
    Cement Weighing Capacity0-400KGWeighing load cell
    Water Weighing Capacity0-300KGWeighing load cell
    Additive Weighing Capacity0-25L
    MIXER
    Load capacityl1200L
    Mixing capacityl750L
    Pump electric motorkw22
    AIR COMPRESSOR
    Deliveryl/min330
    Air tankl100
    Electric motorkw3
    RECOMMENDED OPTION
    Portable silos26Multi choice
    Concrete belt conveyorm12Width 800,7.5kw
    OPTIONAL
    Cement silo15-100 ton
    Container bag bins2m³Suitable for container bag
    Additive Weighing system25L
    Conveyors (Ø 219mm with motor)
    DIMENSIONS AND WEIGHT
    Widthmm2305
    Lengthmm6055
    Heightmm2530
    Weightkg
