Customized Ready Mix Concrete Batching Plant 13 M³ Aggregate Weighing Hopper

    Buy cheap Customized Ready Mix Concrete Batching Plant 13 M³ Aggregate Weighing Hopper from wholesalers

    Buy cheap Customized Ready Mix Concrete Batching Plant 13 M³ Aggregate Weighing Hopper from wholesalers
    • Buy cheap Customized Ready Mix Concrete Batching Plant 13 M³ Aggregate Weighing Hopper from wholesalers
    • Buy cheap Customized Ready Mix Concrete Batching Plant 13 M³ Aggregate Weighing Hopper from wholesalers

    Customized Ready Mix Concrete Batching Plant 13 M³ Aggregate Weighing Hopper

    Ask Lasest Price
    Brand Name : ENCKE
    Model Number : 100 m³/h
    Certification : CE
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    Customized Ready Mix Concrete Batching Plant 13 M³ Aggregate Weighing Hopper

    Customized Ready Mix Concrete Batching Plant 13 M³ Aggregate Weighing Hopper


    General technical information:

    Dry mix concrete plant:

    Minimal foundation works
    Possibility of moving the plant from one site to another
    Low maintenance costs
    Pre-cabled and pre-assembled at the workshop
    Speed of assembling in site
    Easy and cheap transport


    Ready mix concrete plant can be customized !

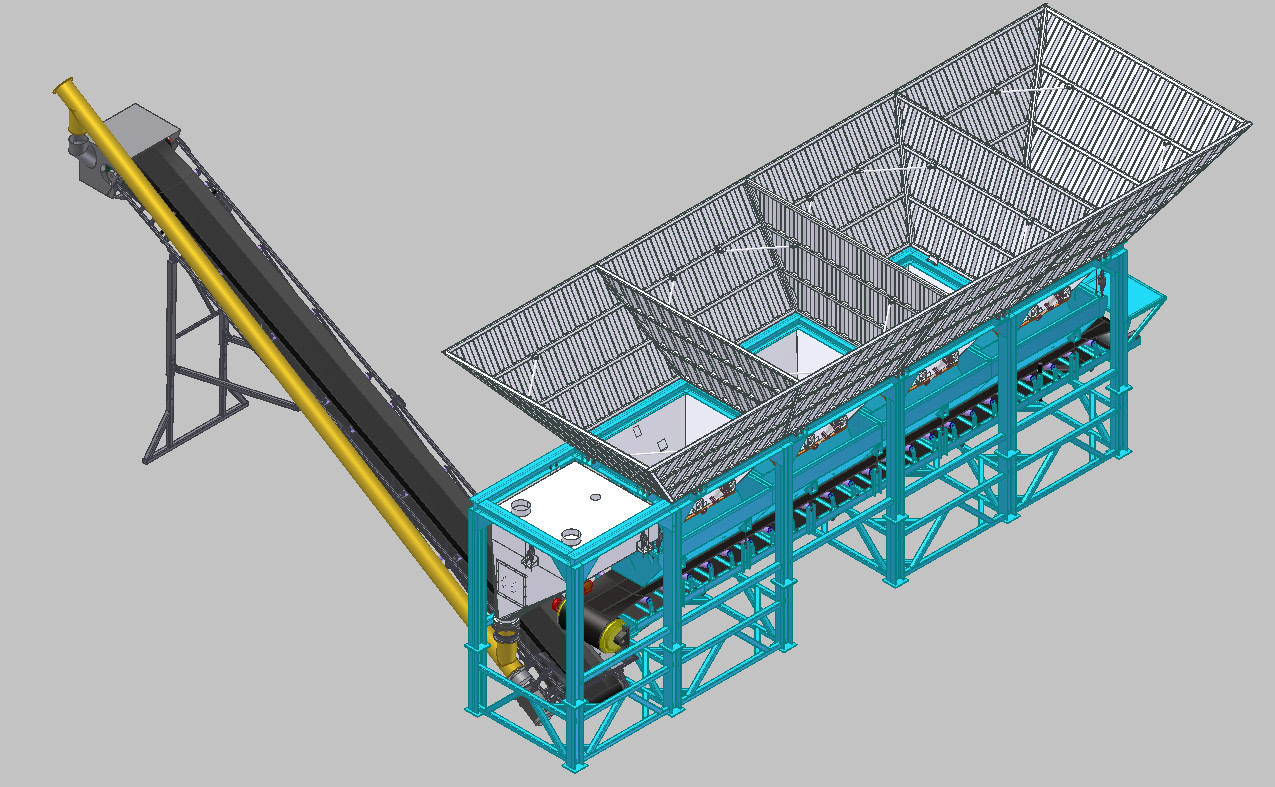

    Detail show:

    Customized Ready Mix Concrete Batching Plant 13 M³ Aggregate Weighing HopperCustomized Ready Mix Concrete Batching Plant 13 M³ Aggregate Weighing Hopper


    Technical Features:


    Technical featuresMETRIC UNITSUNITED STATES UNITS
    Theoretical hourly output100 m3/h130 yd3/h
    Aggregate storage65-95 m385-124 yd3
    Aggregate storage bins4 n°4 n°
    Discharge gates/Pneumatic cylinders8/8 n°8/8 n°
    Aggregate weighing hopper13 m317 yd3
    Aggregate weighing system20000 kg44,092 lb
    Cement weighing hopper3 m33.9 yd3
    Cement weighing system3000 kg6,610 lb
    Liter counter pulse emitter 2”54m3/h
    Extractor belt with sheet 800 mm220 m3/h287 yd3/h
    Conveyor belt with sheet 800 mm220 m3/h287 yd3/h
    Loading screw Ø 273 mm80 ton/h88 t/h
    Air compressor500 L132 gal
    Operating voltage400 V460 V
    Operating frequency50/60 Hz50/60 Hz
    Absorbed electrical power55/41 HP/kW55/41 HP/kW
    Installed electrical power75/56 HP/kW75/56 HP/kW
